Antenna system



More antenna pictures coming soon!

Four Towers (#1-37 meters, #2-29 meters, #3-18 meters, #4-17 meters)

160 meters Inverted Vee at 29 meters ( tower #2)
80 meters Inverted Vee at 29 meters ( tower #2)
80 meters Four slopers-Handbook Design (summer 2001) (tower #1)
40 meters 3 el Telrex 40M346 at 38 meters (tower #1)
40 meters 2 el 402CD at 18 meters (tower #3)

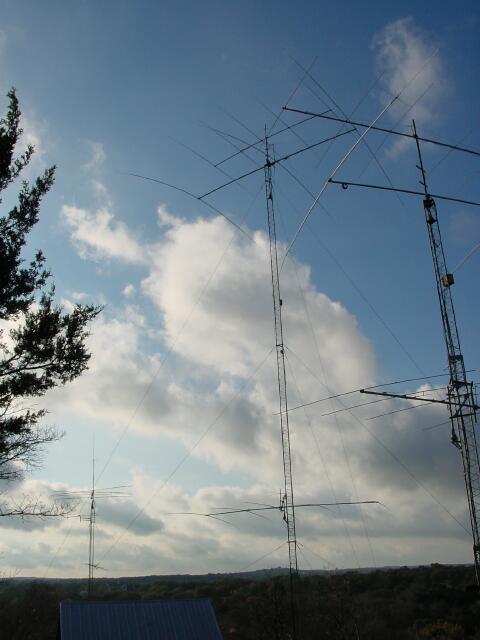

20 meters 5 el/5 el stack at 40 meters/12 meters (tower #1) (third 205CA 5 el at 26 meters summer 2001 for 5/5/5 stack)
15 meters 5 el/5 el stack at 29 meters/15 meters (tower #2)
10 meters 6 el/6 el stack at 20 meters/10 meters (tower #3)
10/15/20 meters triband KT34A at 17 meters (tower #4) (multiplier antenna)

Receiving Beverages: 200 meters Europe NE and 200 meters Japan/Asia NW
